15.0m/s
Camera Speed
25kg
Dynamic Payload
1,900mm
Arm Reach
0.05mm
Motion Repeatability
G-ka FLEX-TV
The medium-sized arm span, high-speed capabilities, and versatile functions make the G-ka Motion Control ideal for film, television dramas, web dramas, TVCs, MVs, and educational settings. It is particularly well-suited for equipment companies, niche production companies (e.g., culinary), television stations, and film schools.
- 25 kg large load, support for the installation of teleprompters
- IP67 protection level of fully enclosed arm design, all internal wiring, safe, reliable and tidy
- It has an ultra-wide temperature adaptation of -12-55 degrees, and there is no need for a heat engine at low temperatures
- Inner threading box with tally light
- The industry-leading robotic arm low noise system can meet the application of live news environment
- With multi-dimensional electronic anti-collision mechanism
Broadcast
control software
for Motion Play
- Graphical UI interface in line with the working habits of the director;
- The zoom and focus of the robotic arm and lens can be controlled in the software;
- Manual and automatic operation is possible;
- Support third-party linkage departure and automatic operation;
- Basic data of the robotic arm and temperature detection of each axis;
- Real-time programming can be carried out using a dedicated operator station.
Virtual Shooting Compatibility
- Support UDP, freed interface protocol;
- With GENLOCK frame genlock;
- Support lens focus and zoom;
- Position resolution: <0.01mm, angular resolution: <0.001 degrees;
- Perfectly matched with supported engines: Unreal, Disguise, vizrt, aximmetry, hecoos, Unity 3D, and other virtual systems.
TV Broadcast G-ka Flex TV
A variety of easy-to-learn and easy-to-use subdivided application software ecology
G-ka Motion Control Software Operating Ecosystem

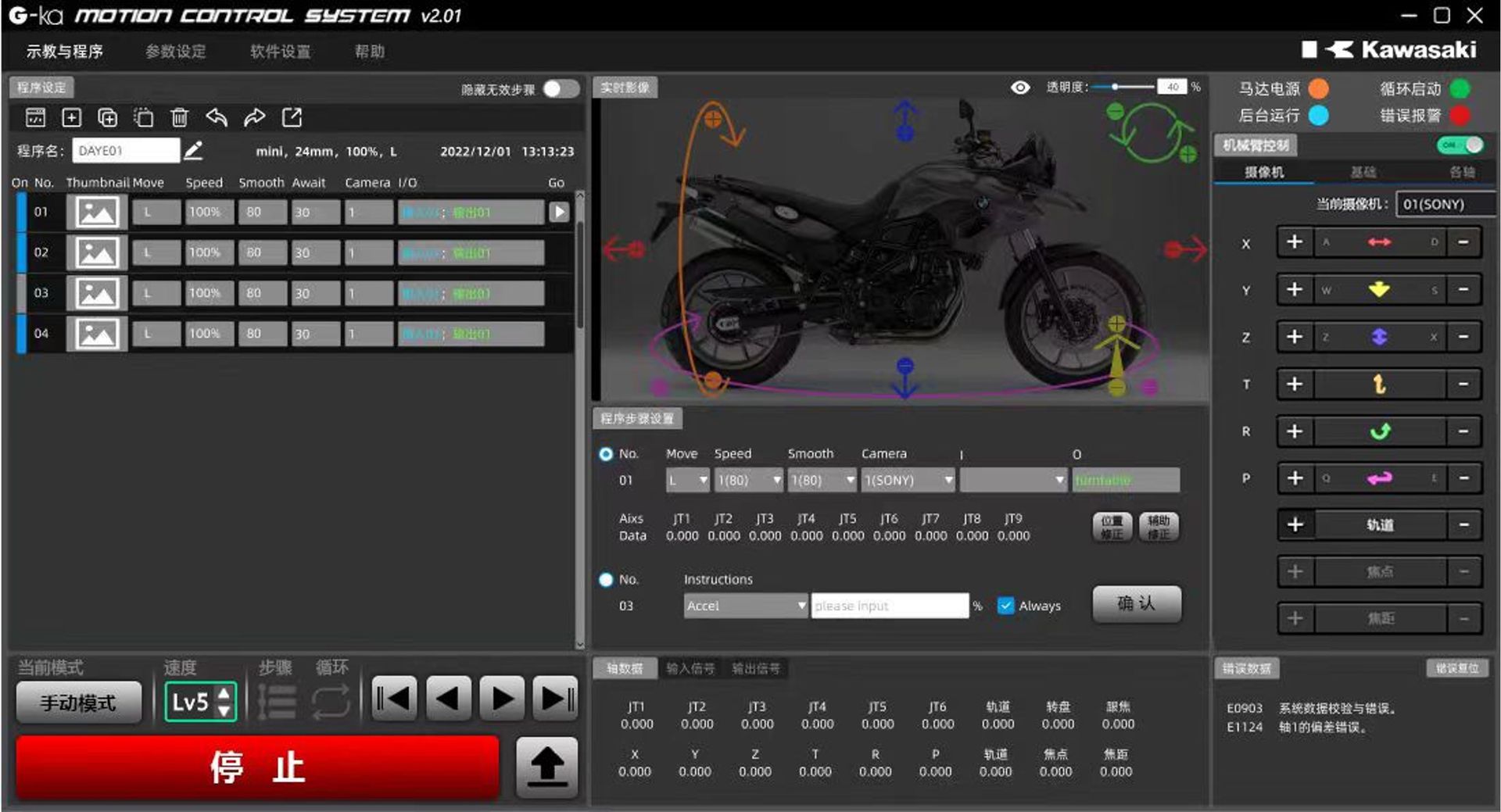

Intelligent Control (IC) general-purpose fast programming software
- The logic is clear, easy to learn and understand
- A variety of robotic arm motion control methods
- You can grab a single-frame index of keyframe video
- You can store virtual keyframes for creative thinking
- It has a wealth of tools for creating camera movements

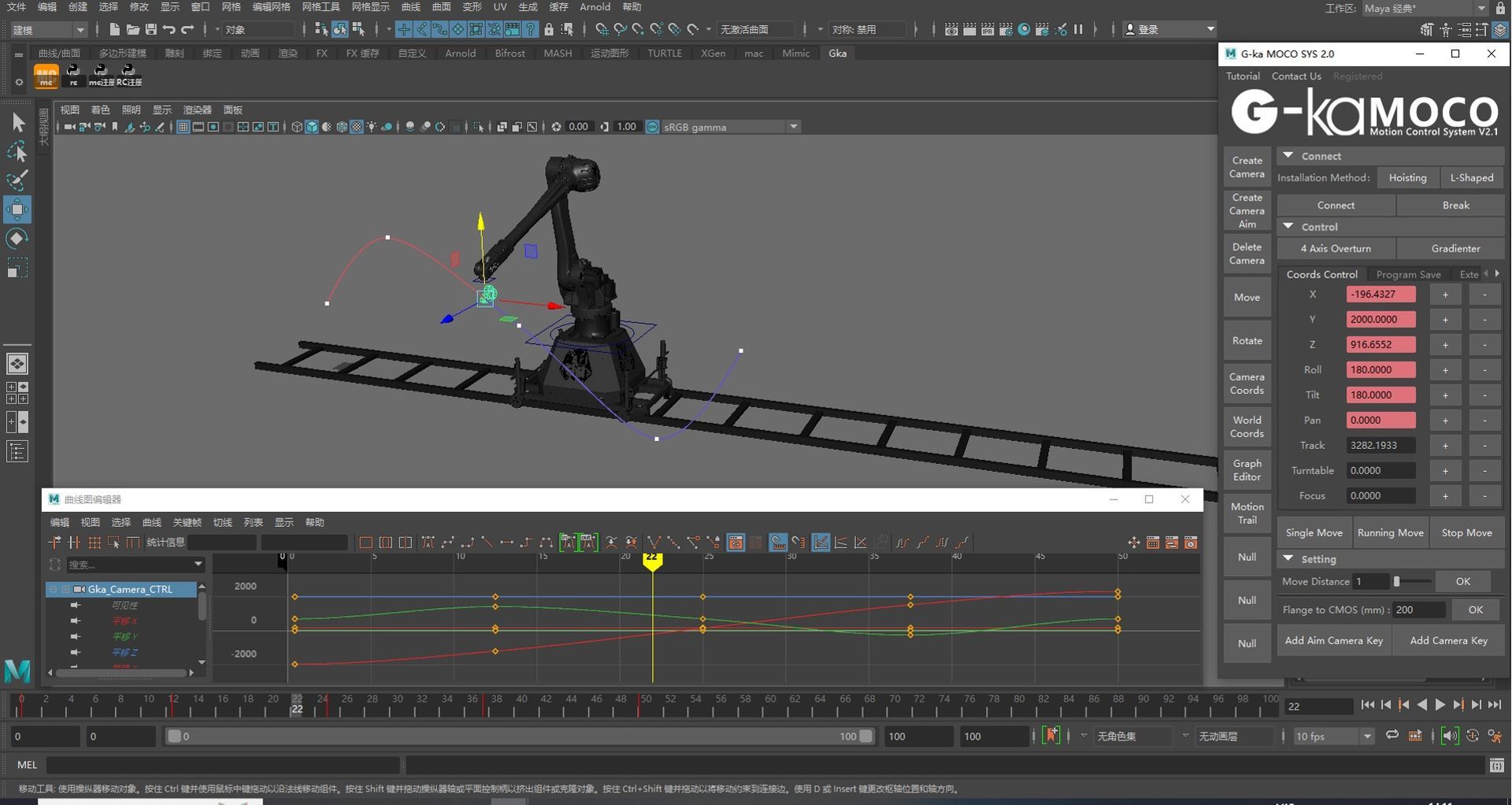

Maya control plug-in
- Visually edit motion trajectories
- The movement curve can be adjusted freely
- Scaling and rotation of motion tracks
- With precise time control
- Precise interpolation of the arm body with the rail
- With target lock mode

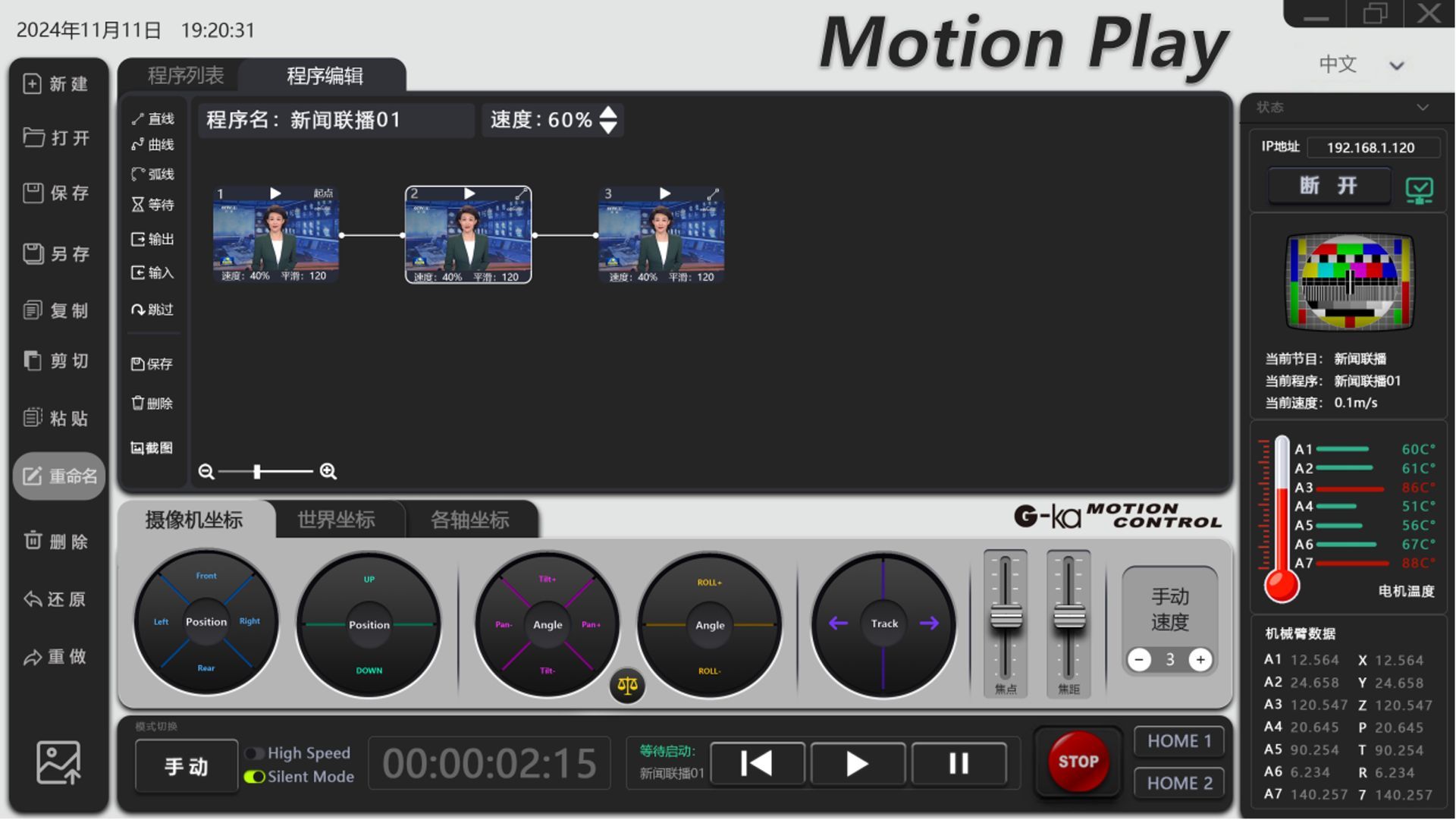

Motion play special camera movement programming software for radio and television
- Simple and easy-to-understand UI programming interface
- Node-based keyframe logic
- To grab keyframe thumbnails
- Comes with a backwater to accompany you, which is convenient for remote operation
- Comes with a return position to avoid other camera goofs
- Equipped with a dedicated hardware operation panel

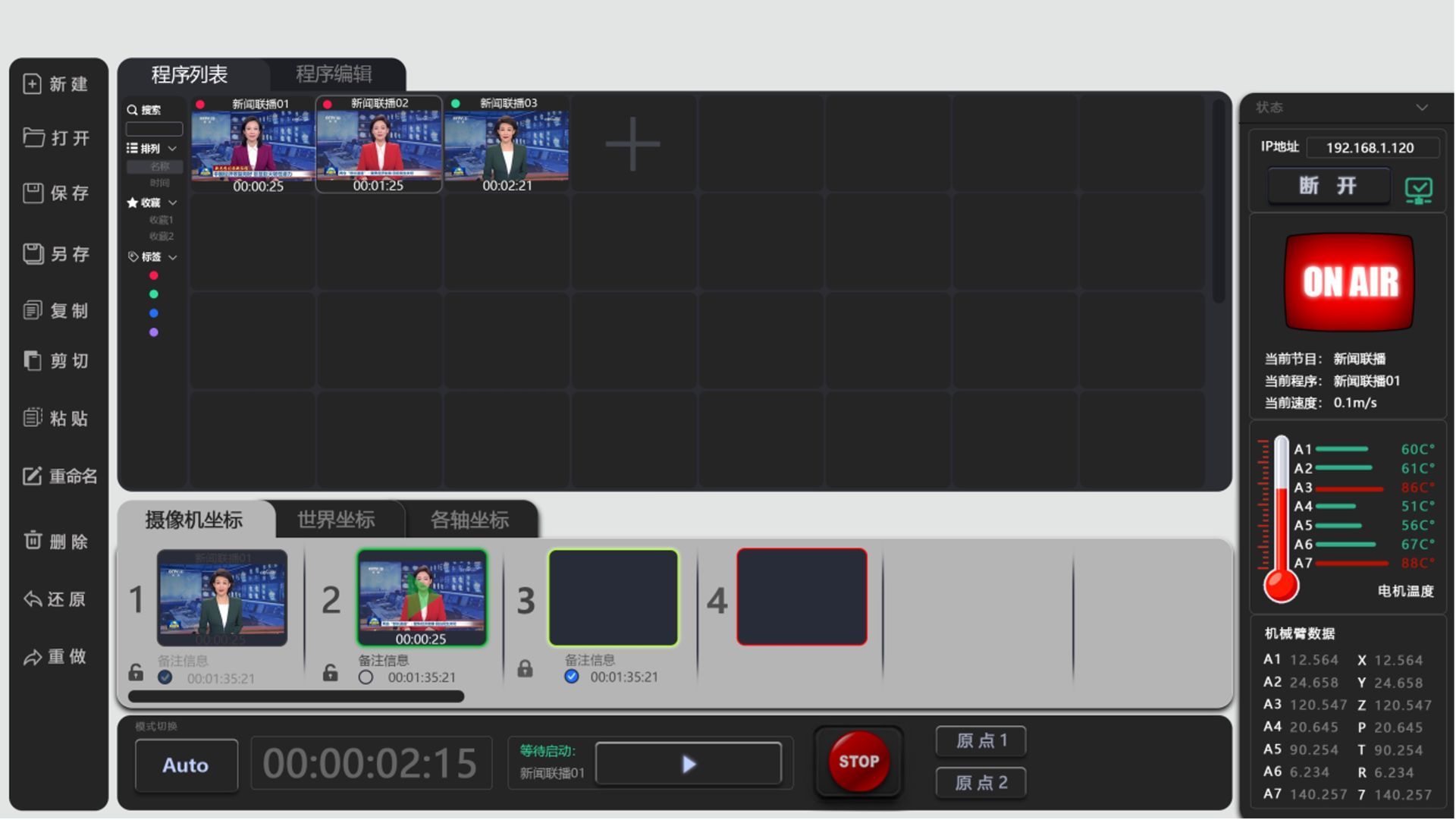

Auto play automatic list broadcast control software
- A clear logical list of programs
- It is convenient to jump to Motion play to modify the camera movement
- It is equipped with a high-frequency noise suppression algorithm for the robotic arm
- Detection with information such as the position and temperature of each axis of the robotic arm
- Fully automatic shooting can be triggered by a third party
- You can output log information

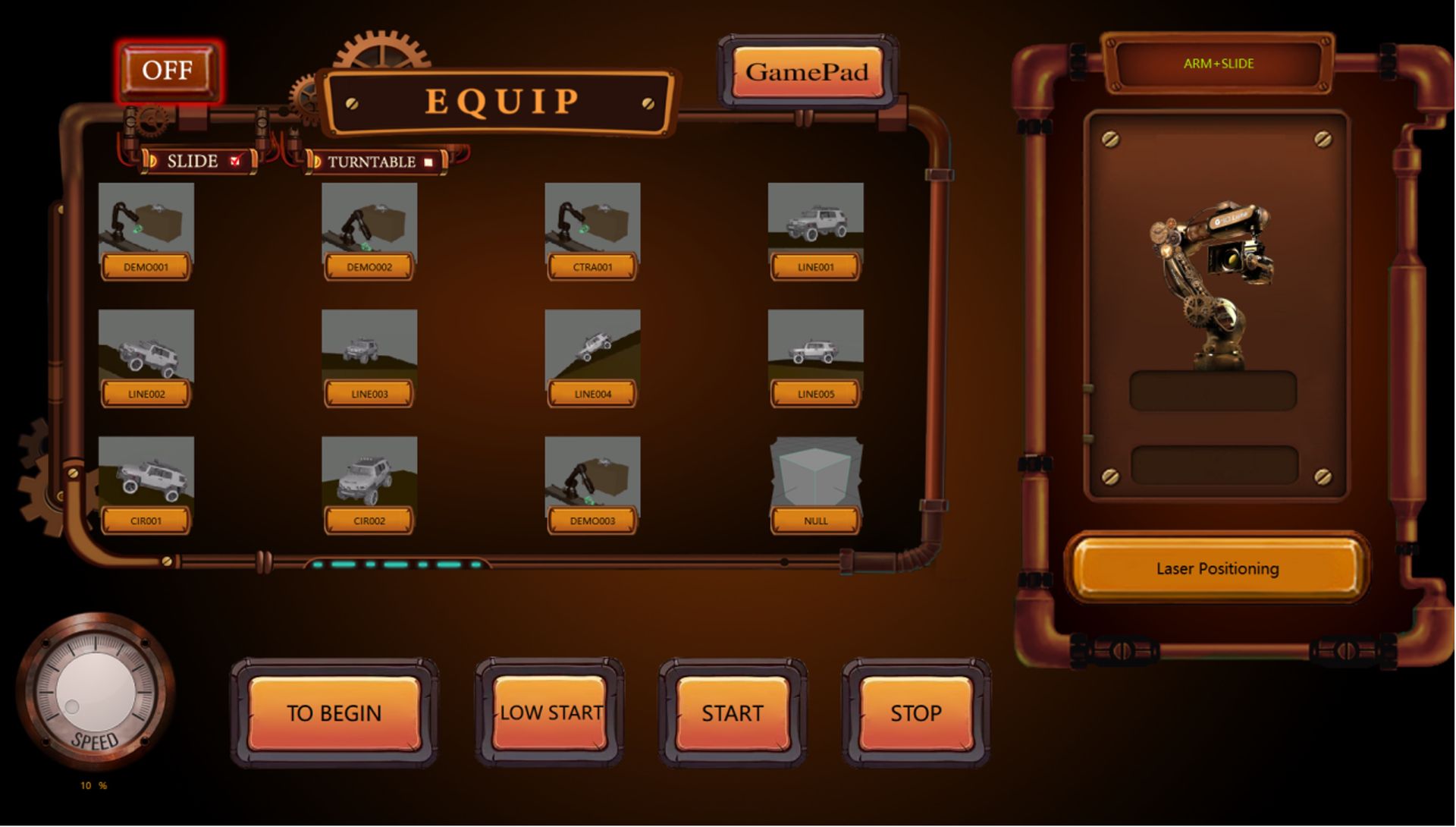

Shot game
- Commercial video shooting software that can be learned in two minutes
- The gamified UI interface makes shooting as fun as playing a game
- It's easy to add your own app movement templates
- One-click review of shooting position (with laser positioning accessories)
- Shooting and live streaming are fully compatible
- The extra-large button effectively avoids misoperation in dim light sources
